Beskrivelse

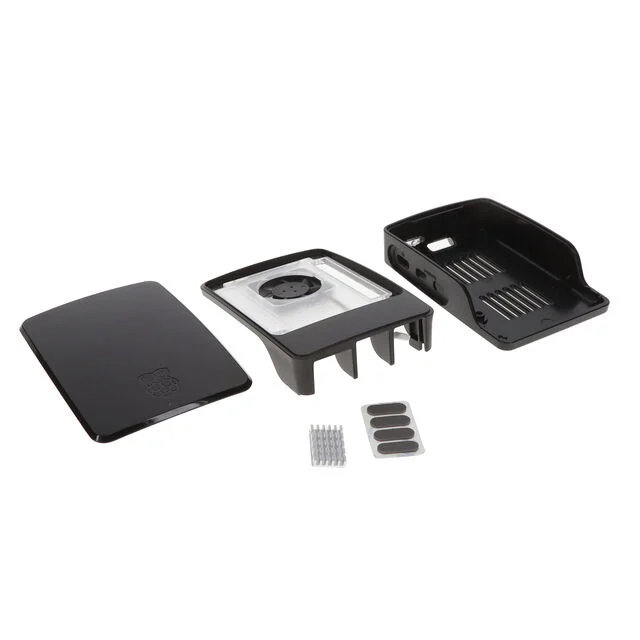

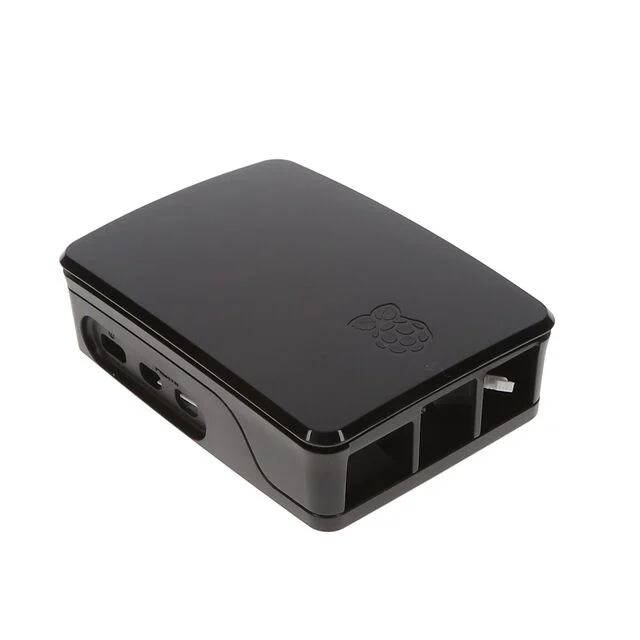

The Raspberry Pi Case for Raspberry Pi 5 is a clip-together, four-part enclosure with an active cooling fan.
It keeps your Raspberry Pi 5 at a comfortable operating temperature even under heavy load.
Features
- Integrated, temperature-controlled cooling fan that connects to the fan header on Raspberry Pi 5
- 12 × 17 × 4 mm heatsink with self-adhesive pad improves heat transfer from the processor
- Easily removable lid exposes fan and breakout slot for cables and GPIO
- Integrated mounting features allow for case stacking
- HATs can be mounted to the enclosure with stand-offs and GPIO header extenders (not included)
- Four silicone feet for the case are included
Specification
- Input voltage: 5V DC (via four-pin fan header on Raspberry Pi 5)
- Fan speed control: PWM with tachometer
- Maximum airflow: 2.79 CFM
- Maximum fan speed: 8000 RPM ± 15%
- Case material: ABS (base, frame, lid) and PC (fan assembly)
