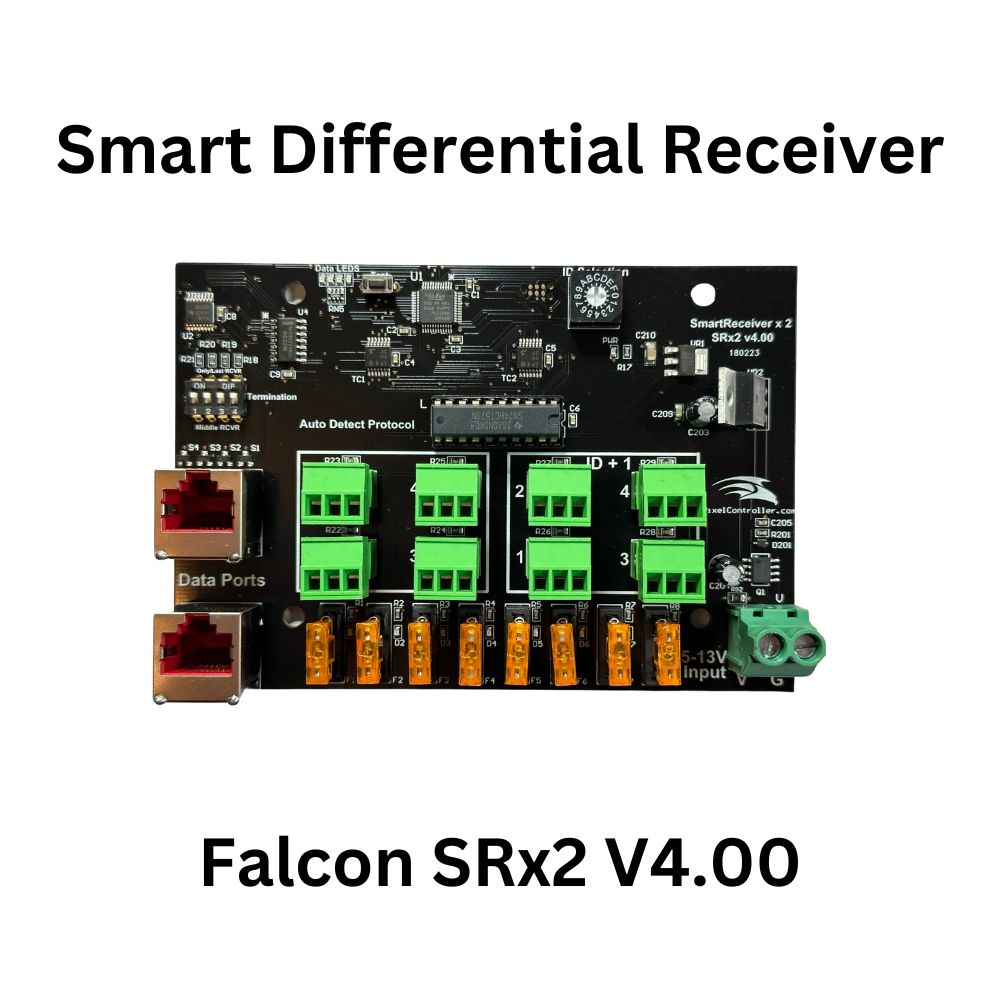

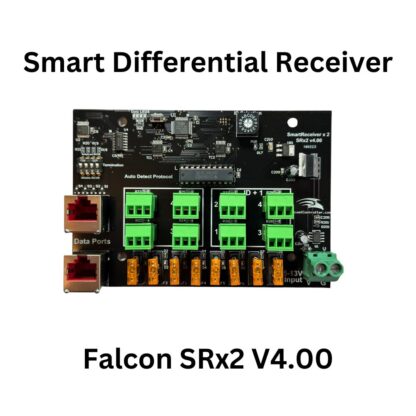

The Dual 4-String Differential Smart Receiver Board can be connected to many different controller options allowing 8 strings to be placed up to 300+ feet from the controllers. The Smart Receiver can be daisy-chained together with other Smart Receivers (maximum six per chain). The chain will share the allocated number of pixels configured for the port it is connected to. The SRx2 counts as two Smart Receivers for the chain.
The Smart Receiver has a built in test mode that is activated by a push button. Great for testing pixels without the need of a controller. The board features four LEDS that will light respectively when data is detected on the four data lines.
The SRx2 is compatible with any Falcon differential pixel controller or any Beaglebone based differential pixel controller.
Technical Specs:
3 Port Phoenix Connectors Included
Supports 3-wire pixels only.
