Beskrivelse
Compatibility
Works with F16V5, F16V4, F48V4, F16V3, F48 and
F16V3 or F16V4 Differential Expansion Boards.

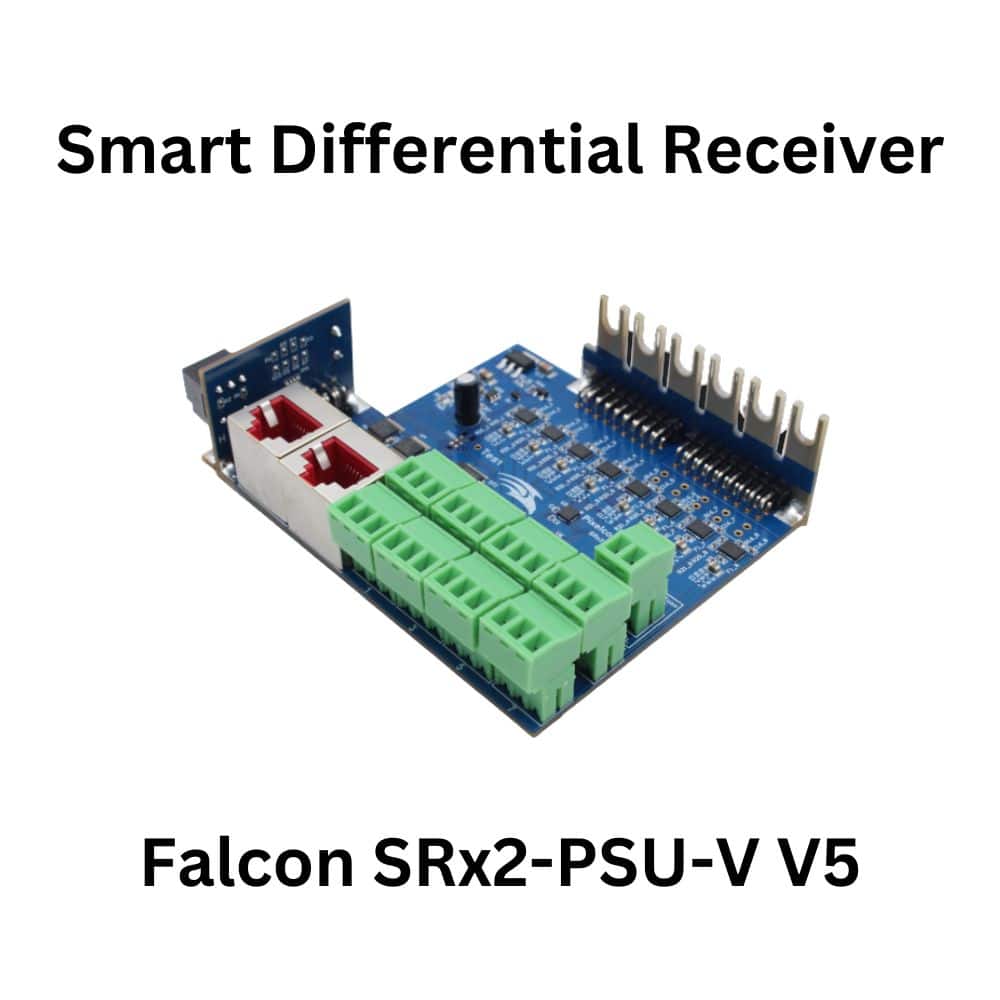

Dual 4-String SmartReceiver · 8 Ports · E-Fuses
The SRx2-PSU-V with E-Fuses is a Dual 4-String Differential (Long Range)
SmartReceiver Board with 8 ports.
Key Features
- Resettable E-Fuses on all outputs, controllable by the controller to allow power only when needed
- Current, voltage, fuse status, firmware version, and string properties reported back to V5 controllers
- E-Fuse status indication via LEDs and web UI
- Vertical mount to LRS-350 or generic power supplies for a compact fit in smaller enclosures
- Firmware updates via data cable, with a single chain or all controller chains updateable simultaneously in approximately 30 seconds
- TVS diode protection on input and output RS-485 signal lines
- Easy-to-view status LEDs and ID switch
Note: Supports 3-wire pixels only.
