Description

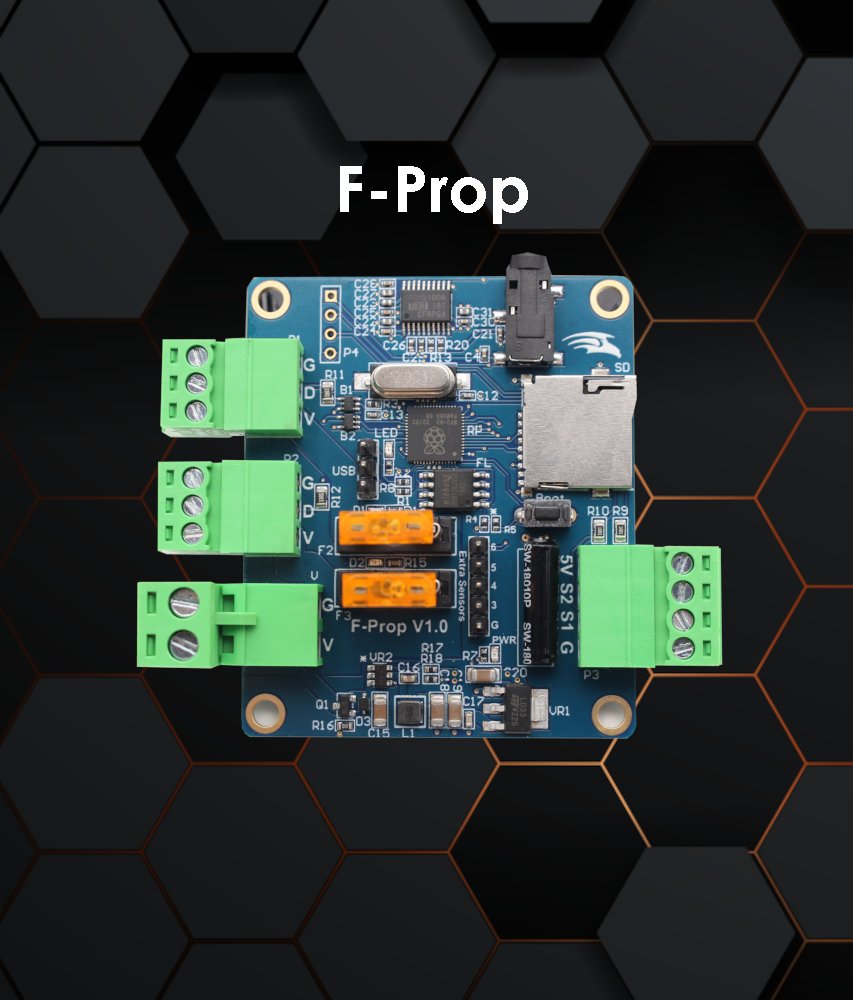

The F-Prop Player is a standalone prop controller capable of driving
2 strings of up to 1024 WS2811 (or compatible) pixels each.
Key Features
- 1024 pixels per output
- 5A fuse protected
- Audio playback
- 15MB onboard memory for pixel & audio data (no SD card required after programming)
- Supports both 5V and 12V
- Trigger-based playback with up to 6 inputs
- Board size: less than 2″ × 2.5″
Inputs & Sensors
Compatible with any digital trigger, including:
- Audio sensors
- PIR / motion sensors
- Reed and switch sensors
- Ultrasonic distance sensor**
- Inbuilt vibration sensor
Also includes 16 timers, built-in effects, and the ability to play FSEQ pixel data from xLights or other sequencing software.
Can output up to 6 digital signals for relay control.
Ideal For
- Selfie stations
- Animated tune-to or directional signs
- Standalone animated props for neighbors, family & friends
- Tradeshow or demo props
- Interactive Halloween props
- Door hangers & novelty displays
- Kitchen and architectural lighting
