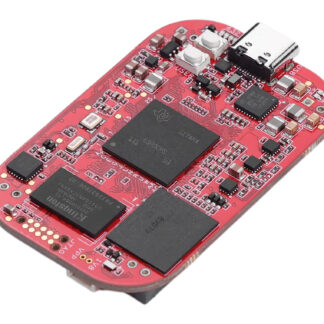

PocketBeagle 2 Industrial
Ny

PocketBeagle 2 Industrial

469,00 DKK

The PocketBeagle 2 Industrial is an ultra-compact and powerful single-board computer designed for embedded development, prototyping and industrial applications. Featuring a modern multicore processor, onboard memory and extended temperature support, it provides a reliable and energy-efficient platform for both small projects and large-scale deployments.

Forventet levering: 20. april - 21. april

Kun 1 tilbage på lager

MPN: 100003007 Varenummer (SKU): 9067 Kategori:
Brand:

Beskrivelse

Industrial-grade pocket-size single-board computer!

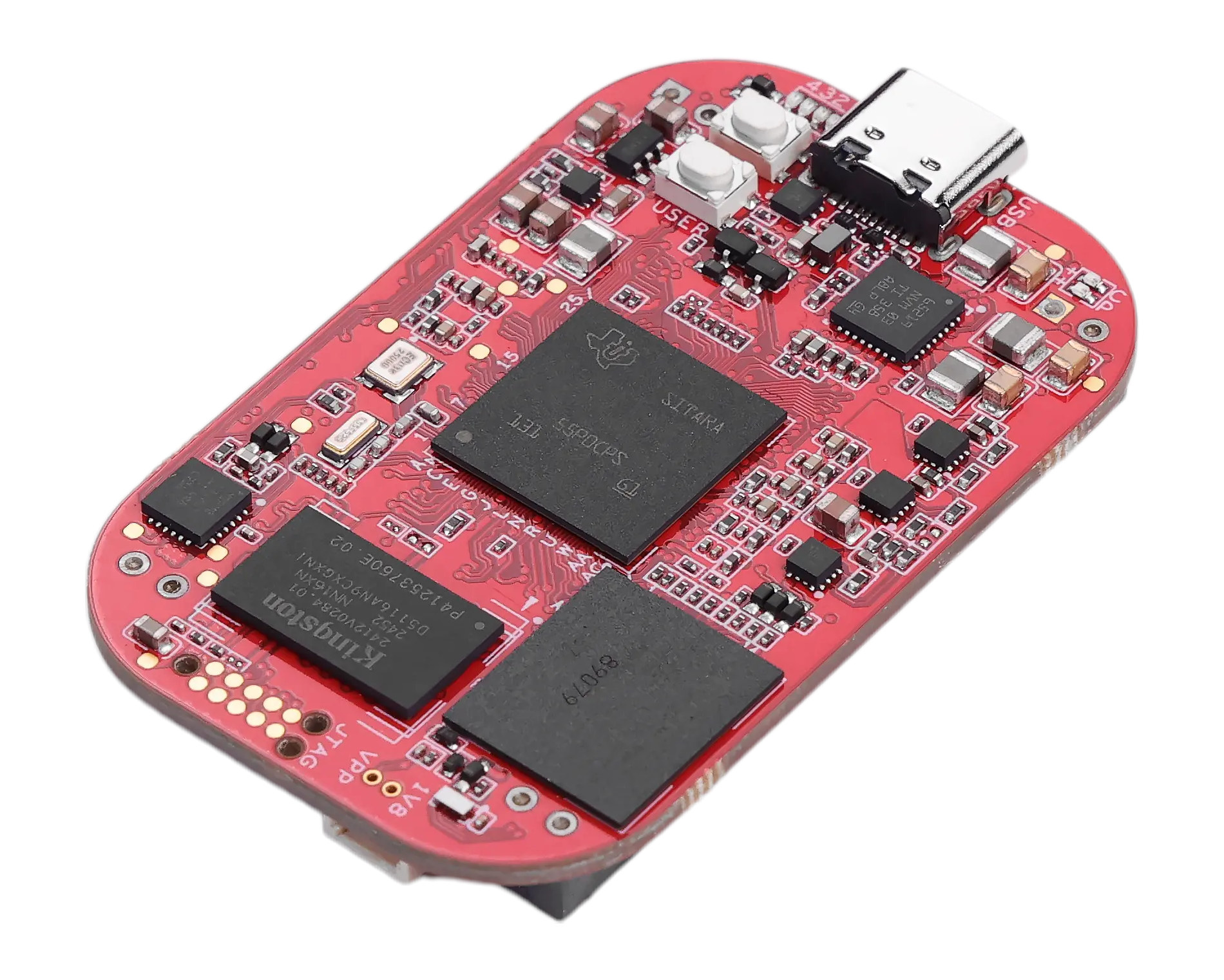

PocketBeagle 2 Industrial is an industrial-grade version of the popular PocketBeagle 2, designed as an ultra-compact, low-cost, and powerful single-board computer (SBC). Built for developers, engineers, and industrial applications, PocketBeagle 2 Industrial retains the flexibility and small form factor of the standard version while adding enhanced memory, onboard storage, and support for extended operating temperatures. It is well suited for embedded control, industrial automation, IoT gateways, monitoring systems, and reliable deployment in demanding environments.

PocketBeagle 2 Industrial is based on Texas Instruments AM6254 SoC. Its quad Cortex-A53 cores provide higher performance than the standard PocketBeagle 2. The design comes with pre-soldered headers, a 3-pin JST-SH 1.00mm UART debug port, a USB-C port, Texas Instruments MSPM0L1105 Cortex-M0+ MCU for ADC, 1GB DDR4 RAM, 64GB eMMC storage, and a LiPo battery charger. With support for an operating temperature range of -40°C to 85°C, it is designed for reliable use in harsh environments.

Chipset Features

Texas Instruments AM6254 SoC

  • Multicore 64-bit Arm Cortex-A53 microprocessor subsystem at up to 1.4 GHz
    • Quad Cortex-A53 cluster with 512KB L2 shared cache with SECDED ECC
    • Each A53 core has 32KB L1 DCache with SECDED ECC and 32KB L1 ICache with parity protection
  • Single-core Arm® Cortex®-M4F MCU at up to 400 MHz
    • 256KB SRAM with SECDED ECC
  • Dual-core Programmable Real-Time Unit Subsystem (PRUSS) running up to 333 MHz
  • Dedicated Device/Power Manager
  • Trusted Execution Environment (TEE) supported

Texas Instruments MSPM0L1105 Arm Cortex-M0+ MCU

  • 32-MHz Arm® Cortex®-M0+ MCU
  • 32-KB flash
  • 4-KB SRAM
  • 12-bit ADC

Board Features

  • SDRAM Memory: 1GB DDR4 3200MHz
  • Flash: 64GB eMMC
  • PMIC: TPS6521903
  • Debug Support:
    • 3 pin 3.3V JST-SH 1.00mm UART debug port (RPI debug probe compatible)
    • 10-pin JTAG TAG-CONNECT footprint
  • Power Source: USB C or Cape Header VIN (5V @ 1A)
  • Expansion: 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog inputs, 52 digital I/Os, and numerous digital interface peripherals
  • LED Indicators: 1x Power, 1x Battery charging, and 4x User Controllable LEDs
  • SD/MMC Connector: microSD (1.8/3.3V)
  • User Input:
    • Power Button
    • User/Boot Button
  • Operating Temperature: -40°C to 85°C
  • PCB: 55 x 35 mm
  • Weight: 12.7g

Specifikationer

Andre
Vægt 0,013 kg
