Beskrivelse
The QuinLED An-Penta-Mini is a compact and affordable 5-channel analog LED dimmer designed for small to medium-sized lighting installations. It is ideal for controlling single-colour, RGB, RGBW and other analog LED strips, offering smooth and reliable dimming in a compact form factor.
Based on the ESP32-C3 platform with WiFi connectivity, the controller supports a wide input voltage range of 12–48V. Its high-frequency PWM dimming at approximately 20kHz provides smooth, flicker-free lighting, making it suitable for both everyday installations and camera-sensitive environments.

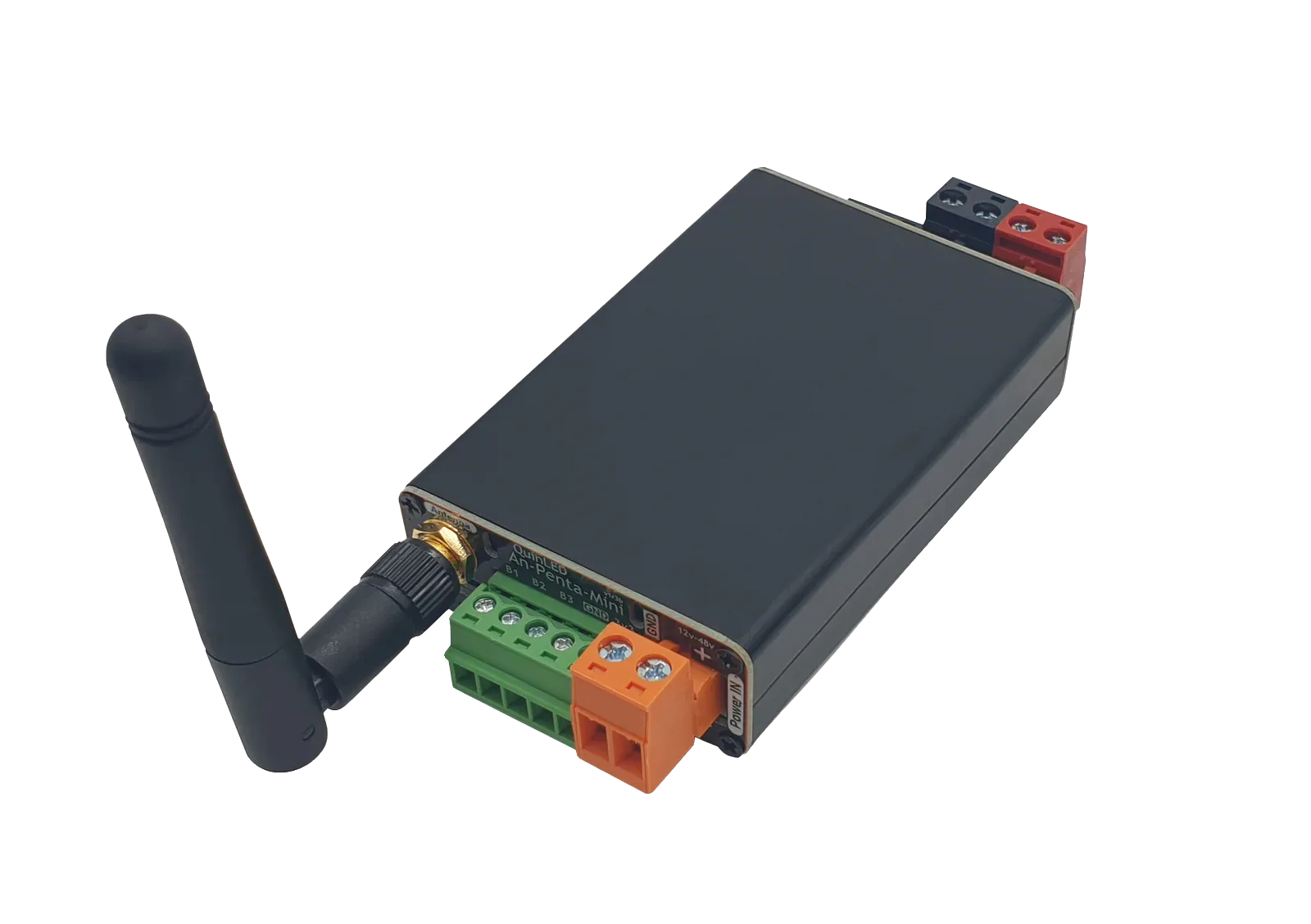

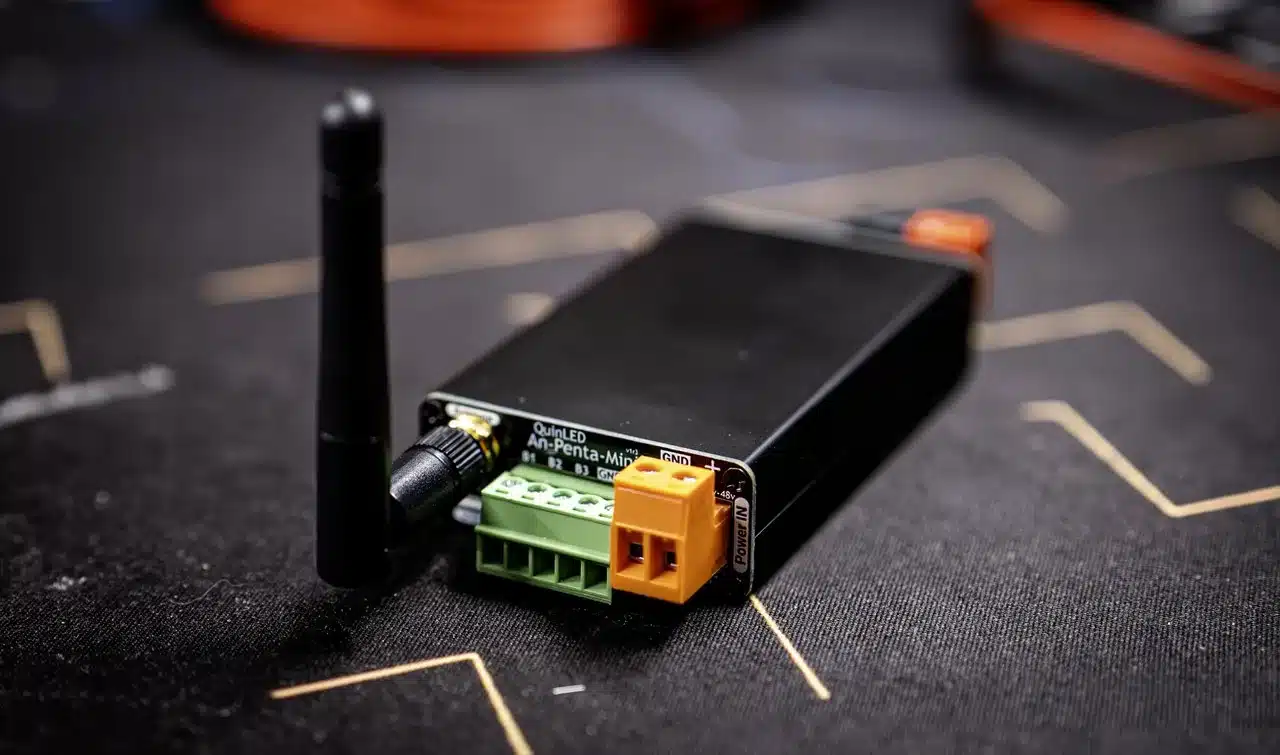

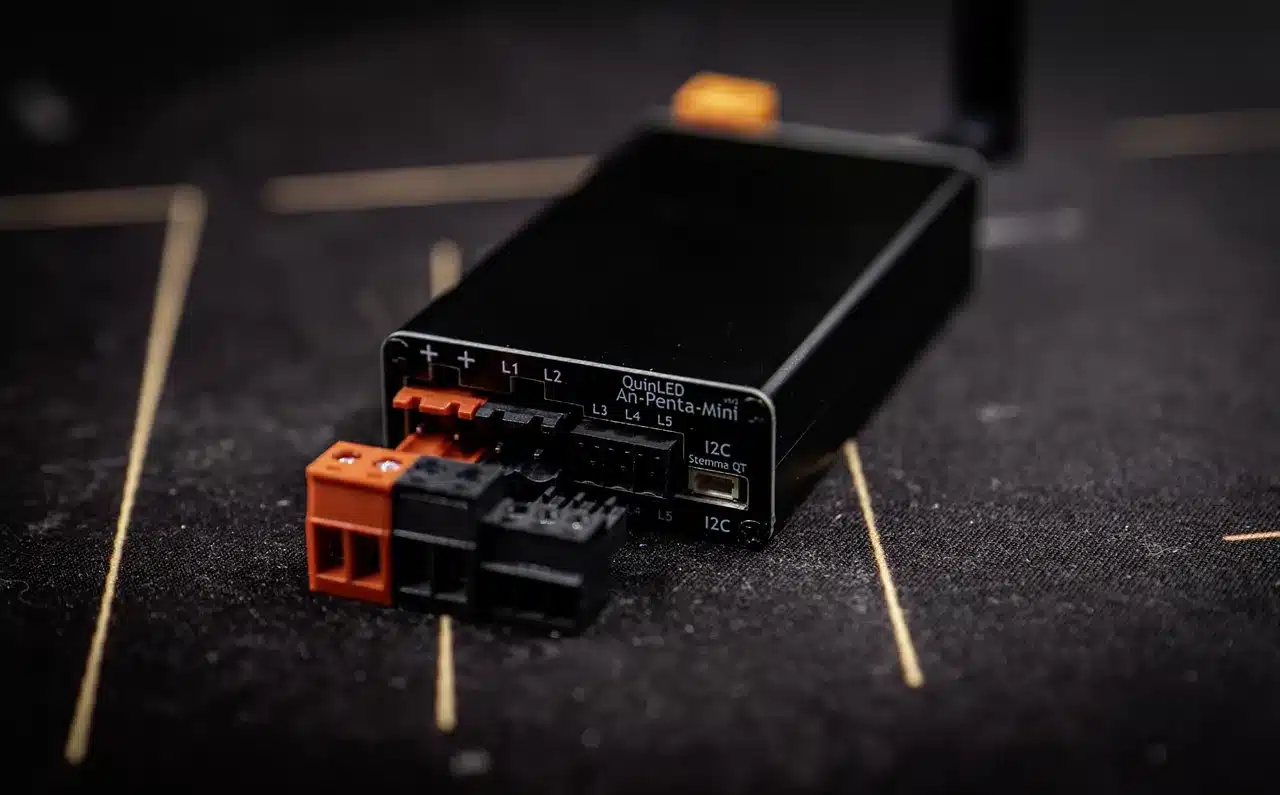

The An-Penta-Mini comes fully assembled in a durable aluminium enclosure with an external WiFi antenna, USB-C connectivity and replaceable internal fuses. Its compact design makes it easy to integrate into installations where space is limited, while remaining compatible with popular firmware such as WLED.
Key features
- ESP32-C3-based 5-channel analog LED dimmer
- Designed for single-colour, RGB, RGBW and other analog LED strips
- Wide input voltage support (12–48V)
- High-frequency ~20kHz PWM for smooth, flicker-free dimming
- Up to 5A per channel, with a maximum total current of 10A
- WiFi connectivity with external antenna and USB-C interface
- Replaceable internal SMD fuses for added protection
- Compatible with firmware such as WLED
- Supplied fully assembled in a compact aluminium enclosure
View the full specifications and documentation here:
https://quinled.info/quinled-an-penta-mini-specifications/
