Beskrivelse
The QuinLED An-Penta-Plus is a powerful and versatile 5-channel analog LED dimmer designed for medium to large lighting installations. It is ideal for controlling single-colour, RGB, RGBW and other analog LED strips, offering high power handling, smooth dimming and flexible connectivity for both hobby and professional lighting projects.
Supporting a wide input voltage range of 12–48V, the controller delivers up to 10A per channel with a maximum combined current of 30A. Its high-frequency PWM dimming at approximately 20kHz provides smooth, flicker-free lighting, making it particularly suitable for installations where consistent brightness and camera-friendly performance are important.

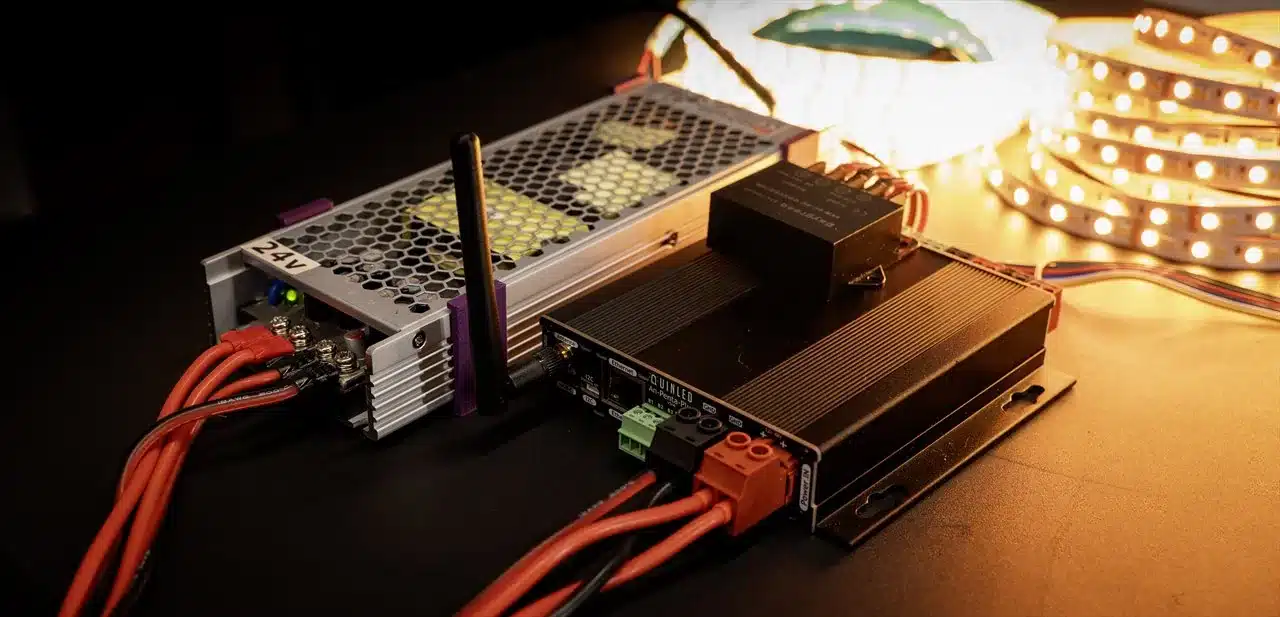

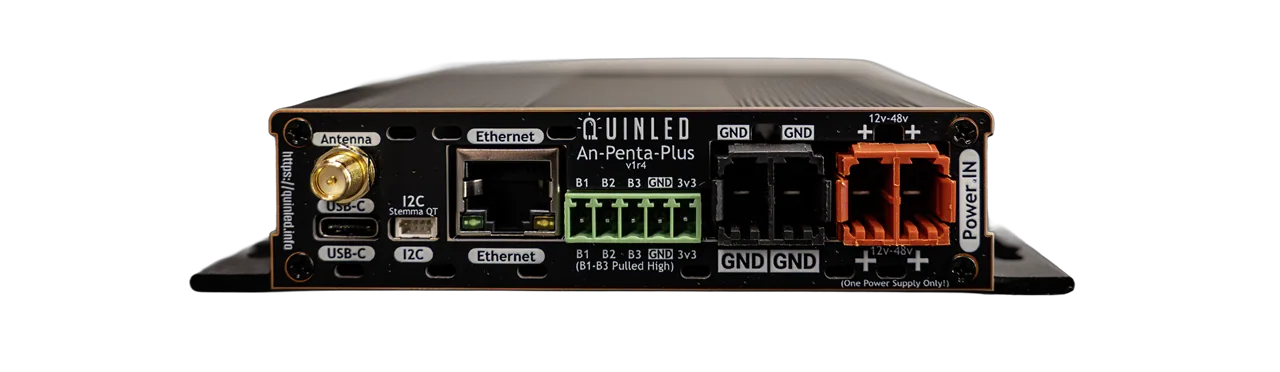

The An-Penta-Plus features both WiFi and wired Ethernet connectivity for reliable integration into different lighting systems. In addition to its five analog channels, it includes a digital LED output for expanded installation possibilities. The controller comes fully assembled in a durable enclosure with an external WiFi antenna, making it suitable for a wide range of lighting applications.
Key features
- High-power 5-channel analog LED dimmer
- Designed for single-colour, RGB, RGBW and other analog LED strips
- Wide input voltage support (12–48V)
- High-frequency ~20kHz PWM for smooth, flicker-free dimming
- Up to 10A per channel, with a maximum total current of 30A
- WiFi and wired Ethernet connectivity
- Additional digital LED output for expanded functionality
- USB-C interface and I2C expansion connectivity
- Compatible with firmware such as WLED
- Supplied fully assembled in a durable enclosure with external WiFi antenna
View the full controller index and documentation here:
https://an-penta.info/
