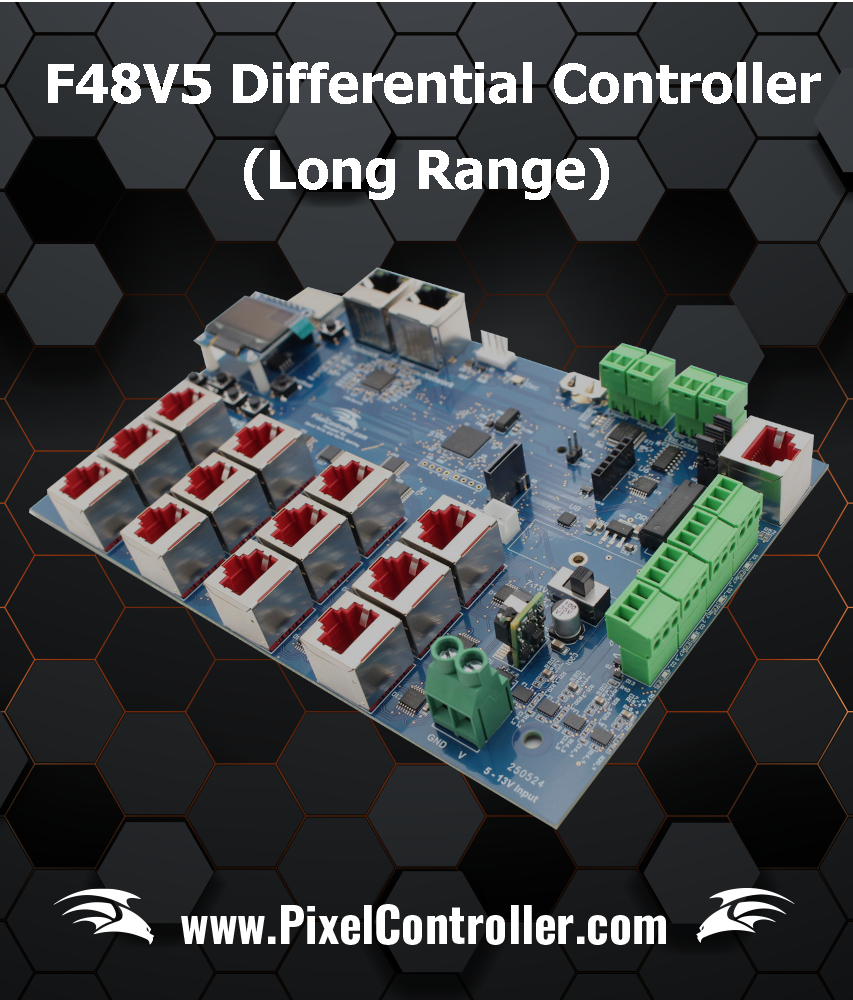

Falcon F48V5
48 Differential Outputs with bi-directional communication to all version 5 receivers in Smart Receiver Mode.
Receivers report voltage, port current, firmware version, pixel counts, and more.
Version 5 receivers can be updated over the wire.
Drives up to 32,768 pixels from E131, DDP, or Artnet.
Includes embedded local SmartReceiver and supports up to 12 Falcon Differential SmartReceiver Chains.
Features
- Bidirectional communication with Version 5 receivers
- Embedded SRx1 V5 SmartReceiver
- 192 Universes of E131, Artnet, or DDP (no restrictions on input type)
- 2-Port Switch for daisy-chaining controllers
- Wireless ESP-07 Module (board mount antenna, optional external antenna)
- Falcon Player Remote Mode (store sequences on microSD, sync with FPP master)
- Single 4-layer board
- Ability to drive 12 SmartReceiver chains
Power
Powered from 5V or 7–13VDC, requires minimum 3A power supply.
Local SmartReceiver
Built-in local SmartReceiver. Ports 1–4A function as the local SmartReceiver ports.
Ports
48 ports total.
All ports can use any of the 98,304 channels as a start address.
Each string configurable for null nodes, zigzag, direction, pixel count, grouping, etc.
Pixels per Port
- 1024 max per port (32-port mode)
- 704 max per port (48-port mode)
Pixel Types
DMX & Renard Outputs
1 dedicated RS-485 output (RJ-45 connector)
Display & Controls
- 0.96″ OLED 128×64 matrix display for setup & status
- 5 push buttons (Up, Down, Left, Right, Select)
- Power LED indicator
- 2 multipurpose status LEDs
Sensors
- 1 processor temperature sensor
- 1 additional temperature sensor
