Description

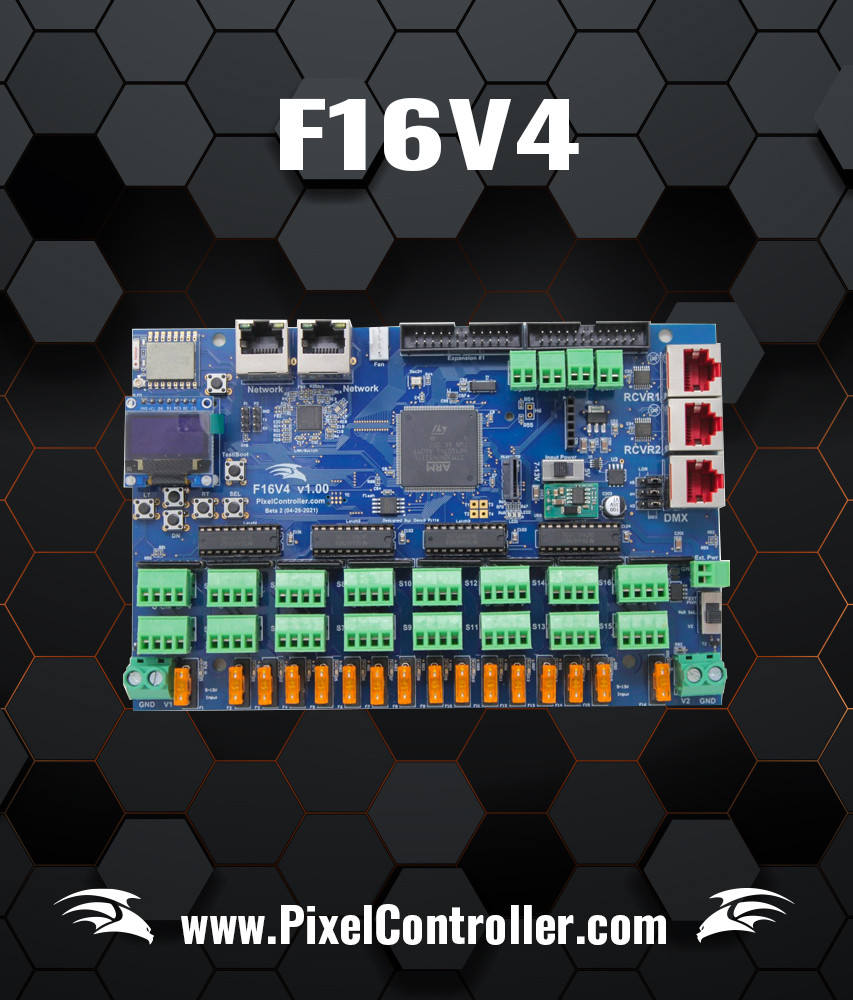

Falcon F16V4 Pixel Controller
The controller receives 192 universes of E131, Artnet or DDP data and can output pixel data
to 16–48 strings with optional expansion boards.
New Features
- 192 Universes of E131/Artnet
- 2-Port Switch for daisy-chaining controllers
- Wireless ESP-07 Module (board-mount antenna, optional external)
- Falcon Player Remote Mode (play sequences from microSD, sync with FPP master)
- Compact 4-layer board (3/8” smaller in height)
- Supports up to 2 expansion boards (max 48 strings local + remote)
Power
- Powered from pixel power or external 5–13VDC input
- Power output port to feed switches
- Two independent power sides (can run different voltages)
- With expansion board: 4 independent power inputs (in 32-string mode)
- 16 fused outputs on main board and expansion board
Outputs
- 16, 32 or 48 ports (with expansion)
- Up to 98,304 channels assignable
- Each string configurable (null nodes, zigzag, direction, pixel count, grouping, etc.)
Pixels per Output
- 1024 pixels per output (16–32 port mode)
- 704 pixels per output (48 port mode)
String Types
Supports more than 70+ pixel types.
Receiver Outputs
2 dedicated SmartReceiver ports. Each port supports a chain of up to 6 receivers.
DMX/Renard Outputs
1 dedicated RS-485 output (RJ-45 connector)
Display & Controls
- 0.96″ OLED 128×64 display for setup & status
- 5 push buttons (Up, Down, Left, Right, Select)
- Power LED indicator
- 2 multipurpose status LEDs
- 16 fuse status LEDs
Sensors
- 1 processor temperature sensor
- 2 additional sensors
Voltage Sensors
Incoming pixel voltages of the main board are detected and displayed in the user interface.
Both the web interface and OLED display voltages and temperatures.
Notes
1) Expansion board must be within 1.5 feet of the main board. Longer distance may work, but not guaranteed.
